Walk into any facility that’s serious about quality control in the manufacturing industry and you’ll find the same thing on the walls near the production line: charts. Not decorative charts. Working charts — updated by shift, marked up by operators, sometimes with handwritten notes in the margins.
Those charts are doing something that expensive automated inspection systems and digital tools often don’t: they’re making the production process visible to the people actually running it. Not to a quality manager sitting in an office. To the operator who’s been running the same press for six years and knows something’s off before any alarm fires.
The 7 basic tools of quality control were built for exactly that purpose. Kaoru Ishikawa developed them in 1960s in Japan specifically so that shop floor workers, not statisticians, could analyze quality issues, spot process variations, and drive continuous improvement themselves. Sixty years later they’re still the backbone of manufacturing quality control worldwide, from automotive assembly to food production to medical devices.
This guide covers all seven. What they actually are, when they help, and what breaks when teams misuse them.
Quality control in manufacturing is the ongoing process of making sure that products meet defined quality standards before they reach the customer. That sounds obvious until you look at how many companies treat it as a final inspection step rather than something woven through the entire production process.
Real manufacturing quality control starts with raw materials coming in the door and doesn’t end until the finished product ships. It covers every stage in between and it’s not just about catching defects. Quality control focuses on understanding why defects happen so they stop happening.
The distinction between quality control and quality assurance gets blurred constantly:
Quality control without quality assurance means you catch problems after they occur. Quality assurance without quality control means you have good procedures but no way to verify they work. Good quality control needs both, and the 7 tools are what make the measurement side of that equation functional.
One more thing worth saying upfront: quality control in manufacturing industry isn’t a department. It’s a discipline. Companies that treat it as someone else’s job, the QC team’s job, the inspector’s job, consistently underperform against companies where quality control is everybody’s responsibility, supported by tools everyone can actually use.
Modern manufacturing quality control has capabilities that didn’t exist when Ishikawa was developing his framework. Coordinate measuring machines that measure parts to microns. Automated inspection systems that check 100% of output instead of samples. Statistical process control software that generates control charts in real time from sensor data. Machine vision that spots surface defects faster than any human.
None of that makes the 7 tools obsolete.
Here’s why: automated systems generate enormous amounts of quality control data. The bottleneck isn’t data — it’s understanding. A control chart that nobody knows how to read doesn’t help anyone. A digital tools dashboard full of metrics that quality teams can’t interpret doesn’t improve product quality.
The 7 tools teach people how to think about quality control data, they’re the statistical tools that turn raw numbers into decisions anyone on the floor can act on. They build the instinct that makes quality improvement efforts sustainable not dependent on a single expert who’s the only one who understands what the numbers mean.
That’s not nostalgia for low-tech methods. It’s the reason that every serious Six Sigma, total quality management, and lean quality control program still includes these tools in its core training. They work. They scale. And unlike most software platforms, they adapt to a company’s processes rather than forcing processes to adapt to them.
Here’s a specific scenario. A food production facility with a packaging line running into fill weight control issues and it’s been less than a month since the newest operator stepped on the line. Weights look like they’re being tossed around left and right. Naturally, the team immediately starts pointing fingers at the newbie.
But the team’s instinct is to build a fishbone diagram instead of immediately laying the blame. That’s what a cause-and-effect diagram is, by the way also known as a fishbone or Ishikawa diagram. The quality issue, which in this case is fill weight control, goes at the head of the diagram. We then have bones branching off the spine, categorized into five areas: Machine, Method, Material, Man, Measurement, Environment. Each with very specific, not just general hypotheses.
Turns out, the scales were off by 3%, raw materials from one supplier were running 8% above spec. And the new operator was a factor but smaller than we’d all assumed.
Without this step, the investigation ends with the operator getting more training and we’ve essentially closed the book on it but of course it’s back two months later with the same quality issue, this time because the scales are still drifting and the raw materials are still coming in out of spec.
The thing is, quality control investigations that skip this step tend to just pin the blame on the first likely cause and that works just fine until the problem pops up again six months later because we never actually got to the bottom of it.

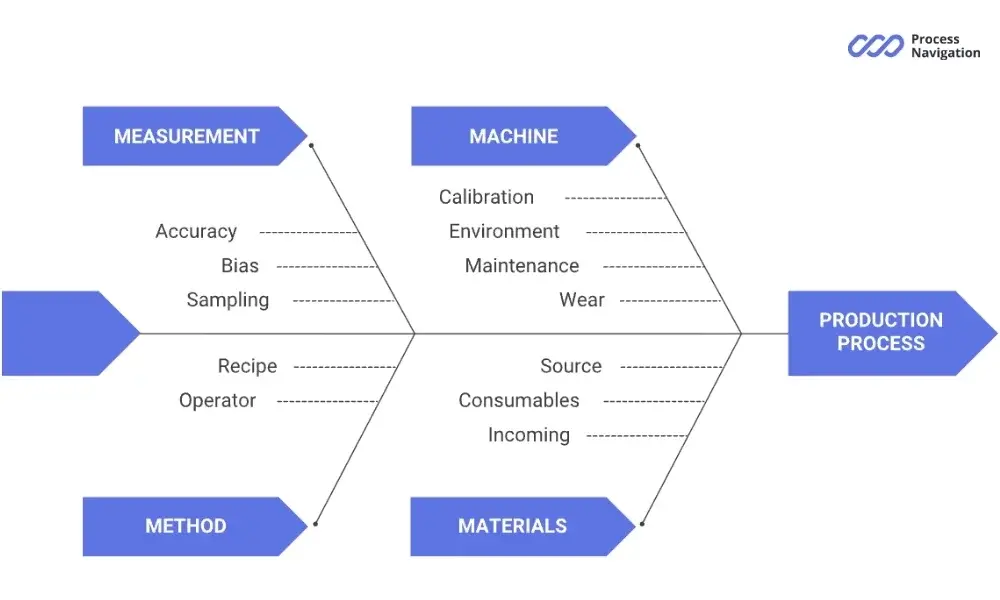

The fishbone diagram’s a great tool to use when you know what the defect is, but not why it’s happening. It works even better as a team session: the more people in the room who’ve been hands on with the production process, the more complete the diagram gets. But let’s be realistic, one person with a blank sheet of paper isn’t going to get it right, it’s going to be half-baked at best.
Now one thing worth mentioning: the fishbone just shows us possibilities, not probabilities. Every single branch on the diagram’s just a theory until we get the data to back it up. What it does do is open up the investigation and make us ask the right questions. Closing it down, that’s something we need to do with other tools.
A check sheet is a structured form for real-time data collection on the shop floor. An operator marks each occurrence of a defect type as it happens. That’s it. Conceptually the simplest of the 7 tools and in practice one of the most important, because without it everything else has nothing to work with.
The key word is real-time. A check sheet filled out at the end of a shift from memory isn’t a check sheet — it’s a reconstruction, and reconstructions have gaps. Proper documentation of production records at the moment of occurrence is what separates useful quality control data from plausible-sounding estimates.
When to use it: Any time you need consistent data collection across shifts, operators, or production batches. Before implementing any other tool. If you’re starting a quality control process from scratch, start here.
Manufacturing example. A production line assembling circuit boards tracks defect types across three shifts for two weeks:
Missing components spike on Shift B — nearly four times the rate of the other shifts. That’s not a random process variation. That’s a pattern that points directly at something specific to Shift B: equipment setup, component feeder maintenance, operator training, or all three. Without two weeks of check sheet data, this looks like a general assembly problem with no direction.
What kills check sheets: Vague defect definitions. If three operators have three different understandings of what counts as a “solder bridge,” the data is noise. Documentation procedures for check sheets need to define each category precisely with photos if necessary.
A control chart tracks a process metric over time, dimension, weight, temperature, cycle time, whatever matters for product quality in that operation, against statistically calculated upper and lower control limits. The centerline is the process average. Points inside the control limits are normal variation. Points outside them, or patterns within them, are signals.
This is statistical process control in practice. And it solves a specific problem that causes enormous waste in manufacturing operations: the inability to tell the difference between random variation and a real process change.
Without control charts, every deviation from target looks like a problem. Operators chase noise. Adjustments made for random variation introduce real variation. The production process becomes less stable, not more. Control charts break that cycle by defining what “normal” looks like statistically and flagging only the deviations that actually mean something.
When to use it. Any production process where process stability matters which in quality control in manufacturing industry is most of them. Especially critical in industries with tight tolerances, industry regulations requiring documented process stability evidence (medical devices, aerospace, automotive), or where costly recalls make early detection economically critical.
Signal patterns to know:
Manufacturing example. A CNC operation monitors shaft diameter. For three weeks: stable, within limits, nothing to flag. Then five consecutive points trend upward toward the upper control limit. Still within spec. Still within control limits. But the trend is a signal.
The maintenance team checks the tooling. Wear is measurable another day of production, and parts would have started going out of spec. Tool changed, process reset, no scrap, no costly recall, no quality issues reaching the customer. The control chart caught a drift that visual inspection would have missed entirely until it was too late.
That’s what statistical process control does when it’s working. Current process performance made visible in real time, before the production process produces bad parts instead of after.
A histogram shows the distribution of a data set: how frequently measurements fall into defined ranges. It’s not about trends over time. It’s about the shape of what your production process is producing right now, relative to what it’s supposed to produce.
The difference between a control chart and a histogram: the control chart tells you when something changed. The histogram tells you what your process is actually doing.
When to use it. Understanding current process performance against quality requirements. Diagnosing whether variation is random or systematic. Checking whether a process is centered within spec limits or consistently biased in one direction.
What the shape tells you:
That last pattern, the cliff edge, is one of the more uncomfortable findings in quality control. It often means someone upstream is screening parts manually without documenting it. The production process looks capable because the bad parts never make it to measurement. Real process stability looks like a smooth tail, not a vertical wall.
Manufacturing example. A food production line measures fill weights on 300 units. The histogram shows a bell curve — good. But it’s shifted 4 grams above target, with the upper tail approaching the overfill limit and the regulatory line above it. The process is consistent. It’s just consistently wrong.
One set point adjustment on the filler later, the distribution centers itself. No new equipment. No investigation into variation. Just a histogram that showed a centering problem instead of a variation problem which is a completely different fix.
A Pareto chart ranks quality issues by frequency and shows their cumulative percentage of the total. It’s the visual form of what most people know as the 80/20 rule: in most manufacturing operations, roughly 80% of defects come from 20% of causes.
The chart tells you where to point quality control efforts first. Not everywhere. Not based on which problem is loudest or which manager is most upset. Based on which problem is actually producing the most defects.
When to use it. Prioritizing quality improvement efforts when you have limited resources. (Which is always.) Tracking whether an intervention actually changed the defect distribution. Communicating to leadership which problems matter most and why.
Manufacturing example. A production line logs 340 defects over four weeks:
Surface scratches and dimensional nonconformance together account for 68% of all defects. That’s where the work goes. Quality teams that spread quality control efforts evenly across all six categories will spend most of their time on problems that represent less than a third of the issue.
The Pareto chart after the intervention is just as important as the one before. If surface scratches drop from 142 to 40, the distribution changes and suddenly wrong labels, which looked minor before, become the leading defect. Quality control is an ongoing quality control process, not a one-time fix.
A scatter diagram plots two variables against each other, one on each axis, one point per observation, to show whether a relationship exists between them. Strong correlation: the points cluster along a diagonal. No correlation: the points scatter randomly across the chart.
After a fishbone diagram generates hypotheses about what might be causing a defect, scatter diagrams test specific cause-and-effect theories with actual production data. That’s the sequence: fishbone to generate, scatter to test.
Interpreting what you see:
Correlation isn’t causation. A scatter diagram showing strong correlation is evidence worth acting on — not proof of a root cause. It narrows the investigation. It doesn’t end it.
Manufacturing example. A manufacturing environment producing rubber seals has tensile strength variation it can’t explain. The quality teams suspects curing temperature based on operator observations. They pull 60 production batches and plot curing temperature against tensile strength.
The scatter shows clear positive correlation between 150°C and 165°C — tensile strength increases with temperature through that range. Above 165°C the relationship reverses: higher temperature, lower tensile strength. The optimal range becomes visible in the data, and the team can now write a quality control process parameter around it with confidence rather than guessing.
Stratification is the practice of separating data by source category, by machine, shift, operator, supplier, raw materials lot, to find whether the variation you’re seeing is actually concentrated in one specific category rather than distributed evenly across the production process.
It’s less a standalone chart and more a way of looking at data from every other tool. Every time aggregate numbers tell a confusing story, stratifying them by logical categories is the first move.
When to use it: When you’re seeing process variations that don’t have an obvious cause. When the aggregate defect rate seems wrong: too high, too random, or too stable to be real. When a production process has multiple machines, shifts, or supply chain inputs and you don’t know whether the problem is universal or localized.
Manufacturing example. A plastics plant has a 4.2% overall defect rate. Not catastrophic, but above target and not improving. When quality teams stratify defect data by machine:
Machine 3 is producing more than half the facility’s defects at eight times the rate of the others. A plant-wide quality improvement initiative would have improved the average while leaving the actual cause untouched. Stratification turns a diffuse quality problem into a specific maintenance problem — which is a problem that can actually be solved.
The 7 tools are most powerful used in sequence, each one answering a different question in a connected quality control process:
Outcome: a supplier quality control conversation backed by seven weeks of structured data. Not a hunch. Not a complaint. Evidence.
Total quality management embeds the 7 tools in organization-wide continuous improvement, not just manufacturing operations but every function that touches product quality. The tools provide the data infrastructure that TQM needs to make quality management decisions based on facts rather than opinions.
Lean quality control uses the 7 tools to find where defects occur in the value stream and eliminate the waste they generate. Rework, scrap, overprocessing, inspection — all of these are forms of waste that the 7 tools help identify and reduce. Reducing waste and improve quality control are the same objective approached from different angles.
Statistical quality control leans hardest on control charts, histograms, and scatter diagrams — the statistical tools with the strongest statistical methods foundation. Statistical process control specifically uses control charts for continuous monitoring of production systems against statistically defined control limits.
Start by organizing your data
None of those 7 tools are going to work properly unless you’ve got reliable data going in and that’s not as obvious as it sounds. I mean, watch a facility spend three months building control charts based on data from a check sheet, where three different operators filled out their answers in three completely different ways because nobody ever bothered to define what actually counted as a defect.
Before you do anything else: establish procedures for what needs measuring, who’s going to do the measuring, how often, and exactly what each category means. Not like ‘approximately’ exactly. A check sheet that’s got ambiguous definitions is going to produce data that might look like it’s structured and makes sense, but actually means squat.
Put your tools where the action is
The 7 tools were designed for the shop floor, not for some quality manager’s laptop, and definitely not for Tuesday morning review meetings where someone presents a chart to people who weren’t even there to get the data in the first place.
When you centralize all the analysis in some back office, the feedback loop blows. Operators collect their data, send it off somewhere, and never get to see what it showed. Eventually, they’ll stop even bothering to collect it in the first place because why would they? The tools only work when the people running the process can see what the data is telling them in real time close enough to actually do something about it.
Keeping all the analysis in a back office is one of the most reliable ways to build a quality control program that produces reports instead of actually making things better. The tools work when the people running the process can see what the data is telling them not when someone emails them a chart three days later.
Use digital tools when they genuinely save you time
Paper check sheets and hand-drawn control charts actually do work fine for a small line or shift or product. For bigger manufacturing operations running multiple lines across multiple sites, they just create delay. By the time you get the data transcribed, compiled and reviewed, the problem that made the data happen is long gone.
Digital tools that capture data as it happens and dump it straight into the statistical process control software get that window a lot smaller. It’s not about the tech, it’s about how fast you can get from seeing the data to acting on it. A control chart that flags a problem as soon as it happens is worth a whole lot more than one that’s just a day behind the times.
Review that data on a schedule you can actually stick to
Data that never gets reviewed doesn’t make anything better and this is where a lot more quality control programs quietly fall apart than people are willing to admit. You’ve got the data being collected, the tools are all set up but nobody’s actually looking at it regularly.
Schedule the review in and protect it. Daily for critical control charts not because you’re expecting to always find a problem, but because the habit of looking is what helps you develop your pattern recognition skills to spot when something is actually off. Weekly for checking on Pareto and check sheet trends. Monthly for looking at the bigger picture across the production process.
The teams that do this on a regular basis stop just reacting to problems – they start anticipating them. And that gap between reacting and anticipating is where the real difference in quality control outcomes comes in.
That was specifically the point Ishikawa was making when he developed them — they don’t. They were designed for shop floor operators without statistical training. A team that understands what a control chart is telling them and what a Pareto chart is prioritizing for them can drive significant quality improvement efforts without ever running a regression. The quality control methods are built into the tools themselves — the statistical logic is already there. You use the output, not the math. That’s what makes them practical across different manufacturing processes regardless of team skill level.
Six Sigma’s DMAIC framework maps directly onto them. Define phase: fishbone to frame the problem. Measure phase: check sheets and control charts for data collection. Analyze phase: Pareto, histogram, scatter diagram to find root cause. Improve phase: implement changes. Control phase: control charts for continuous monitoring. The 7 tools predate Six Sigma by decades and are embedded in it. Six Sigma added rigor and structure around these quality control methods, it didn’t replace them.
Make them as simple as possible: one page, clear categories, marks not words. Involve the operators who’ll use them in designing the defect categories, because they’ll define them more accurately than anyone in an office. Show people what the data produced: the Pareto chart, the shift-by-shift comparison. When operators see that their check sheet data led to fixing something that was making their job harder, consistency improves dramatically. That connection between data and action is also what builds the kind of operational excellence that doesn’t depend on top-down enforcement, people use the quality control methods because they’ve seen them work.
Yes, and they’re underused there. Scatter diagrams testing incoming raw materials properties against downstream defect rates, Pareto charts of defect types by supplier, control charts tracking incoming production batches for consistency — all of these quality control methods apply to supply chain quality with the same logic as in-house manufacturing processes. The goal in both cases is the same: maintain product quality by catching variation at the source rather than after it’s worked its way through production. Supplier conversations backed by this kind of data are more productive than conversations based on complaint counts alone and they do more for long-term customer satisfaction than any inspection at the end of the line.
Check sheets produce useful data within two to four weeks of consistent use. Pareto analysis can identify priority problems within the first month. Control charts start showing their value the first time they catch a process drift before it produces scrap which directly protects final product quality and keeps customer satisfaction where it needs to be. The time to meaningful improvement varies by the complexity of specific production challenges you’re dealing with, but organizations that implement these quality control methods consistently typically reduce defects measurably within one quarter. The limiting factor is almost always data collection discipline, not the tools themselves.
Treating quality control as a final inspection step rather than a process that runs through the entire production process. When quality control focuses only on finished product, defects have already consumed materials, machine time, and labor. By the time the inspector finds the problem, the production process has made five hundred more of them. The 7 tools shift quality control upstream into the process itself which is where preventing defects actually happens rather than just gets documented. That upstream focus is what separates facilities that maintain product quality consistently from those that react to problems after the fact. It’s also the foundation of real operational excellence not just hitting targets on good days, but building manufacturing processes stable enough to hit them every day. And it’s what drives customer satisfaction over the long term: not a good batch when conditions are perfect, but consistent output regardless of who’s on shift.
Industry regulations in sectors like medical devices, aerospace, and food manufacturing typically require documented evidence of process stability, data collection procedures, and corrective actions taken in response to quality issues. The 7 tools generate exactly that documentation as a byproduct of normal use, control charts demonstrate process stability, check sheets document quality control activity, and the analysis trail from fishbone through scatter diagram shows how quality risks were investigated and resolved. These quality control methods serve quality first; regulatory compliance follows from using them properly. And when compliance is demonstrated through structured data rather than after-the-fact paperwork, it tends to hold up better under scrutiny which matters for customer satisfaction at the enterprise level, where a single regulatory failure can affect entire manufacturing processes and the supply chains that depend on them.
