Lockout Tagout Procedures (LOTO)

In a manufacturing environment equipment and machinery are hazards, especially during maintenance. Improper operation of equipment can cause sudden start up, electric shock, burns, crush injuries and other accidents. To prevent these incidents lockout tagout procedures are put in place to control hazardous energy and ensure energy sources are locked out. It’s important to notify employees of equipment shutdowns to keep the work area safe. These procedures require specific employee training, selection of control methods and proper use of lockout and tagout devices. Not only does LOTO protect employees, but also extend equipment life and reduce maintenance costs.

But lockout tagout procedure violations are one of the most frequent and serious violations OSHA records. The average fine for noncompliance is about $19,000 per case. LOTO compliance prevents 120 fatalities and 50,000 injuries per year so it’s a big deal for worker safety.

What is Lockout Tagout (LOTO)?

Lockout tagout procedures (LOTO) are a set of measures to control hazardous energy (hazardous energy control) aimed at protecting workers during maintenance and repair of equipment. The procedure includes physical blocking of energy sources and visual warning of the work being carried out with appropriate personal protective equipment.

The lockout tagout system is based on a simple principle: if energy cannot be controlled, the machine or equipment cannot be operated. This applies to all types of energy: electrical, mechanical, pneumatic, hydraulic, thermal and chemical. A properly implemented lockout tagout procedure becomes the basis for a safe production culture and significantly reduces the number of industrial injuries. Employees perform these critical safety tasks when servicing machines.

The system operates on the principle of double protection: a physical lock (Lock Out) prevents the equipment from being turned on, and a warning sign (Tag Out) explains why this cannot be done. This approach eliminates the human factor, the main cause of industrial injuries when employees are working with machines.

Lockout tagout procedures are used to control any type of hazardous energy (hazardous energy control): electricity, steam, compressed air, moving mechanisms, chemically active substances and even gravity-related risks. Wherever a potential threat may be hidden, the LOTO system provides reliable protection for workers.

Understanding the terminology is the basis for the correct application of lockout tagout procedures. Each term has a clear meaning that cannot be interpreted ambiguously. These definitions become the basis for developing specific procedures for each type of machine or equipment in the enterprise.

Term	Definition	Practical application
Energy-isolating device	Physical devices that stop the flow of energy	Switches, valves, disconnectors, circuit breaker, line valve — everything that can be properly locked with a lock
Zero-energy state	A state of complete safety when all power is turned off	The goal of any lockout tagout procedure is to achieve this state before starting work
Authorized employees	Trained staff with blocking authority	Only they can install and remove LOTO locks and verify isolation
Affected employees	Employees in the work area	They should be aware of the blocking, but do not participate in its installation

What is Hazardous Energy?

Hazardous Energy is any energy that can harm workers if it’s not controlled or managed during operation, servicing or maintenance of machinery and equipment.

Uncontrolled hazardous energy can cause accidents, injuries or fatalities so it’s a big focus in workplace safety protocols like LOTO. Ensuring proper implementation and training for workers on energy isolation practices is essential so they can correctly apply, use, and remove energy control devices, reducing the risk of accidents during maintenance and servicing activities.

What types of energy are controlled by the lockout tagout system?

• Electrical Energy. Found in live wires, circuits or energized equipment. Risks are electric shock or burns.

• Mechanical Energy. Present in moving equipment, gears, belts or rotating equipment including rotating flywheels. Can cause injuries such as crushing, pinching or cuts if not stopped or locked out.

• Hydraulic Energy. Generated by pressurized fluids in hydraulic systems including water pressure and pressurized water. Risks are sudden release of pressure causing equipment movement or fluid ejection.

• Pneumatic Energy. Stored in pressurized air or gas systems including natural gas. Can cause rapid movement of components or high velocity discharge of air/gas.

• Thermal Energy. From hot or cold surfaces, liquids or steam. Can cause burns, frostbite or thermal shock.

• Chemical Energy. In reactive substances or stored energy chemicals. Risks are explosions, toxic exposure or chemical burns.

• Potential Energy. In objects due to their position such as a raised load or compressed spring. Can cause crushing or impact injuries if released.

• Stored Energy. In capacitors, flywheels or coiled springs including stored energy systems and stored or residual energy. May cause serious physical injuries and require addressing residual energy concerns.

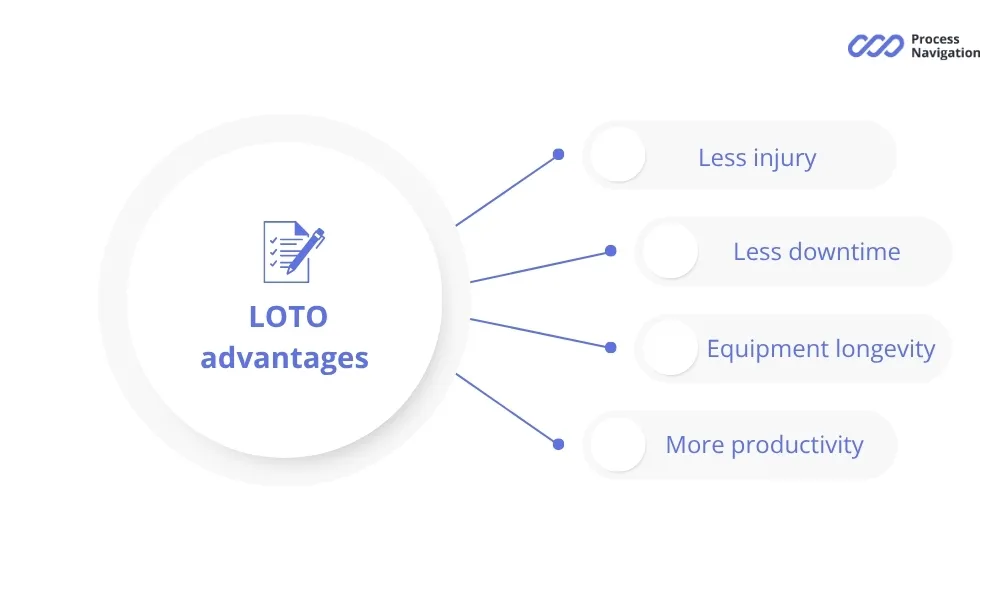

Benefits of LOTO

There are many benefits to worker safety and operational efficiency from following lockout tagout procedures. Lockout devices and tagout devices, along with other safety devices, are key to ensuring safety during equipment maintenance and energy control procedures.

• Less Injury: Isolating energy sources minimizes the risk of burns, electrocution, crushing injuries and other accidents when employees perform maintenance tasks.
• Less Downtime: Accidents due to non-compliance with LOTO can cause lengthy production stoppages for repair. Implementing procedures prevents these situations and unexpectedstartup events.
• Longer Equipment Life: LOTO maintenance reduces the risk of damage from unintended energy releases, which means longer equipment life.
• More Productivity: In a safe work environment employees can focus on their work which means more productivity when performing tasks.

These benefits contribute to a company safety culture that affects not only LOTO but other areas of the workplace where machines and other equipment are present.

Employee Role in LOTO Compliance

The effectiveness of any security system depends on the people who use it. The LOTO system clearly delineates the roles and responsibilities and describes lockout procedures for different categories of personnel. Understanding these differences is critical to the proper functioning of the entire hazardous energy control system.

Authorized vs. Affected Employees

Dividing personnel into categories is not a formality — it is the basis of the access control system for hazardous operations. Each category has its own rights, duties and level of responsibility.

Authorized employees

This is the basis of the LOTO system, people who are fully responsible for the correct implementation of all lockout tagout procedures. Their training and competence determine the effectiveness of the entire security system.

• Have the right to set and remove locks — only they can perform critical operations with the energy-isolating device.
• Have undergone special LOTO training — have received in-depth knowledge of the principles of the system and the specifics of the equipment.
• Know the features of specific machine or equipment — understand all energy sources and how to control them.
• Are responsible for the correct implementation of procedures — assign duties and are responsible for the safety of all participants in the work.

Affected employees

This category includes all other employees who may be affected by the application of the LOTO, but are not directly involved in its implementation. Their role is no less important for ensuring overall safety.

• Work in the area of ​​​​the locked equipment — carry out their normal duties near the place of work.
• Must be notified of the work — have the right to know about potential changes in the operation of the equipment.
• Know the basics of safety with LOTO — understand the meaning of locks and rules of conduct.
• Do not have the right to remove other people’s locks — strictly adhere to the principle of personal responsibility.

LOTO Procedure Basic Steps

The lockout tagout procedure consists of logically connected stages, each of which is critical for safety. Skipping any step or breaking the sequence can lead to tragedy.

Let’s analyze the whole LOTO process from start to finish when employees perform maintenance on machines.

• Identify Energy Sources: Before starting work you must identify all possible energy sources that could harm you as part of the overall hazardous energy control procedure including stored or residual energy.

• Shutdown of Equipment: The device is put into a safe position and the ability to start it is eliminated as part of LOTO. Processes determine the shutdown sequence and equipment is moved to a neutral position.

• Installation of Locks: All control elements of the machine or equipment are locked out so energy can’t be supplied using protective devices and safeguarding devices.

• Labelling: Labels or warning signs are placed to advise the equipment is being serviced.

• Inspection: A visual check is done to ensure energy isolation is complete and verify isolation. Residual energy must be addressed to make the equipment safe for maintenance and prevent unexpected energization.

LOTO checkpoint table:

Stage	Key actions	Control check	Documentation
Preparation	Study the diagrams, notify the staff	All energy sources have been identified	Notification log
Disconnection	Routine equipment shutdown	Complete cessation of movement	Stop time stamp
Insulation	Installation of locks and tags	Lock reliability	Registration of each lock
Energy dump	Discharge, pressure release	Instrument control	Measurement protocol
Verification	Attempting to launch	No response from the system	Signature of readiness

LOTO in the Future: Digitalization

As technology advances digitization is key to improving safety and efficiency. Having a control program is critical in this context as it provides a framework for workplace safety that includes lockout tagout procedures. The control program helps machine operators and maintenance staff follow OSHA standards when working with machines.

Specialized platforms like ProcessNavigation simplify and optimize LOTO procedures by:

• giving employees clear real time instructions and skills required for safe operation.
• allowing supervisors to monitor each step and see deviations during procedures regularly.
• automating tagging and lockout to reduce errors and comply with OSHA standards while preventing unexpected startup.

Lockout tagout is part of the safety culture in any manufacturing environment where moving equipment and machines present hazards. To be successful it requires compliance with applicable provisions, employee engagement, regular oversight and modern technology. Companies that implement comprehensive lockout tagout procedures with proper personal protective equipment and safety devices are not only safeguarding their workers but also building a solid foundation for long term business success. When employees perform maintenance, they must follow procedures to lockout machines and prevent injury from stored systems.
