5S Methodology: Ultimate Guide to Operational Excellence

Imagine a workplace where every employee knows where every tool is, where no time is wasted searching for materials, and where unnecessary motion is minimized. This is the kind of environment the 5S methodology creates—a simple yet powerful five step methodology that has been helping companies around the world increase productivity and eliminate waste for decades.

What is 5s

The 5S methodology is a structured workplace organization system based on five Japanese words that start with the letter S. This methodology is part of lean manufacturing and is to create an orderly, safe and efficient work environment.

The main purpose of 5S is to simplify processes, remove waste and improve functionality.

But the impact of this methodology goes beyond just tidying up.

• It gives employees ownership and accountability.
• It sets the foundation for continuous improvement principles like just in time and continuous flow.
• It helps increase safety, reduce accidents and hazards.
• It makes a more pleasant and efficient work area, improve morale and create a productive work environment.

5s and Japanese Words

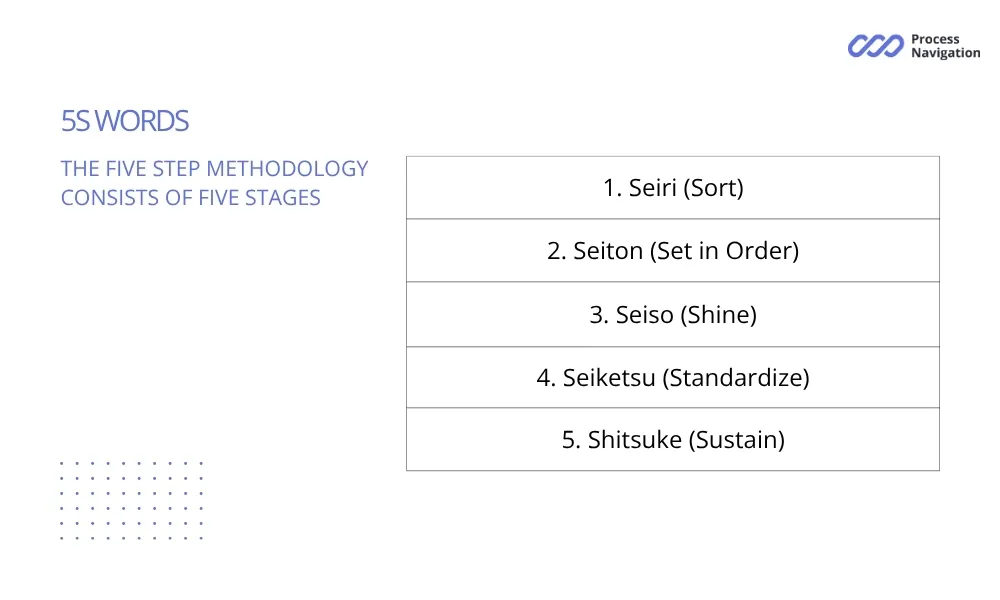

The five step methodology consists of five stages: Sort, Set in Order, Shine, Standardize, and Sustain. The system works by the consistent application of all five principles, focusing on efficiency and waste elimination across industries, especially in manufacturing.

1. Seiri (Sort)

The first principle of the 5S system is to separate all items in the workplace into those that are necessary and those that are not. The red tag strategy is used here, where questionable items are tagged with red tags and sent to a special area for a final decision on their fate.

Actions:

• Take inventory of all items
• Apply the frequency of use rule
• Remove items that are clearly unnecessary
• Create a temporary zone for controversial items

Outcome: A clean and tidy workspace that promotes operational efficiency and reduces confusion.

2. Seiton (Set in Order)

In the second stage of the 5S process, each necessary item is assigned a specific location. This involves shadow boards (panels with tool outlines), point-of-use storage to minimize movement and floor marking standards to visually define areas.

Actions:

• Assign tools and materials to specific locations based on their use and sequence.
• Use visual cues like labels, color codes and diagrams to show where things go.
• Set up shadow boards and tool racks to make it easier to find and store tools.
• Use floor marking tape to define areas and keep things in order.
• Keep walkways and workstations clear.

Outcome: A simple layout that reduces time spent searching for items, minimizes unnecessary motion and improves production efficiency.

3. Seiso (Shine)

The third principle turns cleaning from a one off event into a process. A cleaning schedule is developed, defining who, when and how to keep the workplace clean.

Actions:

• Establish daily cleaning procedures for each workstation.
• Inspect equipment and tools for wear, damage or leaks during cleaning.
• Provide employees with cleaning tools and supplies.
• Establish a cleaning schedule with responsibilities.

Outcome: A clean area that’s safe, reduces downtime, avoids risks associated with hazardous materials and improves employee morale.

4. Seiketsu (Standardize)

The fourth stage of 5S lean is to create 5S standards and document them. Standard work—standardized work procedures that support the first three principles—is implemented.

Actions:

• Standardize workplace organization and maintenance.
• Use standard labels, markings and documentation.
• Train employees on standards and monitor compliance.
• Use tools like checklists and audits to enforce standards.
• Use visual controls to standardize practices and maintain organization.

Outcome: A uniform workplace that reduces variation and simplifies handoffs between tasks or production lines.

5. Shitsuke (Sustain)

The fifth principle of 5s methodology is the most challenging as it requires developing habits. It uses kamishibai audits (card based audits), layered process audits (LPA) for multi-level control and regular gemba walk routines (management walks).

Actions:

• Conduct regular 5S training to reinforce the 5S principles.
• Recognize and reward employees who adhere to the 5S principle through performance reviews.
• Encourage feedback and suggestions for improving 5S implementation.
• Regularly review and update the 5S to meet changing needs.

Outcome: A culture of excellence where employees own the area and look for improvements.

These principles of 5s methodology may seem simple, but implementing them requires thought and a commitment to continuous improvement. Self-discipline is the key component to 5S and making it sustainable.

The 6th “S”

It’s also often recognized that there is a 6th “S” that underlies the entire 5S methodology: Safety. By eliminating unnecessary items, improving organization and cleaning up, 5S becomes safer.

Safety benefits:

• Prevention of workplace accidents by eliminating hazards.
• Ergonomics by arranging tools and equipment correctly.
• Faster response to emergencies with clear pathways and accessible safety equipment.

Including safety into 5S methodology not only protects employees but also reinforces the overall goal of operational efficiency.

5S in Manufacturing

In a manufacturing industry environment 5S is particularly effective due to the repetitive processes and high safety requirements.

Automotive: In the automotive industry 5S lean manufacturing is a quality standard. Companies like Toyota Motor Company, Ford and BMW use the Toyota Production System to optimize assembly lines. Particular attention is paid to 5S safety principles due to the heavy equipment and high speed processes involved.

Pharmaceutical: 5S manufacturing in pharmaceuticals requires strict adherence to 5S standards due to FDA and GMP requirements. Visual workplace systems help prevent cross contamination and poka-yoke mechanisms eliminate dosing errors. Regular 5S training ensures compliance.

Food: 5S in food industry is integrated with HACCP systems. Cleaning schedules are particularly critical and procedures must comply with sanitary standards.

Electronics: 5S in electronics manufacturing focuses on electrostatic discharge protection. Shadow boards are adapted for storing antistatic tools and the visual factory includes humidity and temperature indicators.

5S Implementation: Step-by-step Implementation

Successful implementation of 5S requires a structured approach with clear planning of each stage, distribution of responsibility and monitoring of results.

Stage	Description
Planning Stage: 5S Project Preparation	Analyze the current state: – conduct a workplace ergonomics assessment – record baseline performance indicators – identify areas for improvement Form a team: – appoint a project leader – involve representatives at all levels – ensure senior management support Staff training: – explain the 5s definition and principles – show 5s examples from other industries – conduct practical training
Implementation Stage: The 5S Method in Action	Practical tools: – 5S audit checklist (Digital) — digital checklists for control – Visual workplace — visual signal system – Poka-yoke — error prevention

Key Success Factors

Management Support: Leaders must not only declare support for 5S but also participate in gemba walks, showing their commitment to the principles.

Adaptation to Specifics: 5S in manufacturing is different from 5S in an office or warehouse. Each 5S organization must adapt standard principles to its own situation.

Gradual Implementation: Start with pilot sites, show success, then roll out to other areas. This creates positive momentum and reduces resistance to change.

Common Mistakes in 5S Implementation

Focusing Only on External Order: Many industries see 5S as a simple cleaning task, ignoring the system approach.

Lack of Management Support: Without leaders involved, a 5S program will fail.

Neglecting the Sustain Phase: 90% of failures are due to inability to maintain results.

One Size Fits All: 5S must be adapted to the specific workplace.

5S in Lean

5s lean manufacturing doesn’t exist in isolation. It integrates with other lean tools:

• Kanban — for material flow management,
• Kaizen — for continuous improvement,
• Value Stream Mapping — for value stream analysis and waste reduction,
• TPM — for autonomous equipment maintenance.

5S and Six Sigma

5S in Six Sigma means reducing process variability. Visual workplace helps to quickly identify deviations, and standard work is the basis for statistical process control.

5S and Total Productive Maintenance (TPM)

5s lean manufacturing is the foundation for TPM. The Shine stage in a production process environment is transformed into autonomous equipment maintenance, where operators become the first line of diagnosis for technical problems.

5S and Agile Methodologies

In IT companies 5S is being adapted to support Agile processes. The visual workplace concept is implemented through information radiators, Kanban boards and dashboards for sprint monitoring.

Obstacles

While 5S has many benefits, implementation can be tough. There are some common obstacles:

• Initial Investment: Time and resources to train staff and organize workplaces.
• Resistance to Change: Staff don’t want to change their habits.
• Over Standardization: Too much rigidity can stifle creativity and adaptability.
• Sustainability: Without continuous improvement improvements will deteriorate over time.

To overcome these challenges requires strong leadership, good communication and commitment to continuous improvement.

Digital 5S

Digital tools for a 5S organization:

• IoT sensors for standard compliance monitoring
• Mobile apps for kamishibai audits
• AR for visualizing item location
• Analytics for maintenance prediction
• QR codes for quick access to standard work procedures

Industry 4.0 Integration

Modern 5S systems are increasingly integrated with the concept of “smart manufacturing”. Visual workplace is evolving to digital dashboards, layered process audits (LPA) are automated through machine vision systems and material flow optimization is supported by AI algorithms.

5S is more than a workplace organization system, it’s a philosophy of continuous improvement and efficiency. By implementing and maintaining 5S you can unlock new levels of efficiency, safety and employee engagement.

As you start your 5S journey remember that what matters most is commitment, collaboration and openness to change. With these principles in place 5S will transform your workplace into a hub of productivity and innovation.

5S Methodology Future

Here are 5S organization development trends.

• Artificial Intelligence and Machine Learning: AI will automatically analyze the 5S system, suggest optimizations and predict the need for adjustments. Digital 5S audit checklists will become intelligent monitoring systems.
• Augmented Reality (AR): AR will show the correct location of objects in real time, turning shadow boards into interactive digital signage.
• Internet of Things (IoT): Every tool and material will be tracked in real time, automatically updating the point-of-use storage system and optimizing material flow.
